Migrate to AKS Automatic with GitHub Copilot for App Modernization

This workshop demonstrates how to migrate and modernize the iconic Spring Boot PetClinic application from local execution to Azure AKS Automatic. You'll experience the complete modernization journey using AI-powered tools such as GitHub Copilot app modernization and Containerization Assist MCP Server.

Objectives​

By the end of this workshop, you will be able to:

Prerequisites​

Before you begin, you will need an Azure subscription with Owner permissions and a GitHub account.

In addition, you will need the following tools installed on your local machine:

Setup Azure CLI​

Start by logging into Azure by run the following command and follow the prompts:

az login --use-device-code
tip

You can log into a different tenant by passing in the --tenant flag to specify your tenant domain or tenant ID.

Run the following command to register preview features.

az extension add --name aks-preview

This workshop will need some Azure preview features enabled and resources to be pre-provisioned. You can use the Azure CLI commands below to register the preview features.

Register preview features.

az feature register --namespace Microsoft.ContainerService --name AutomaticSKUPreview
az feature register --namespace Microsoft.ContainerService --name AzureMonitorAppMonitoringPreview

Register resource providers.

az provider register --namespace Microsoft.DevHub
az provider register --namespace Microsoft.Insights
az provider register --namespace Microsoft.ServiceLinker

Check the status of the feature registration.

az feature show --namespace Microsoft.ContainerService --name AutomaticSKUPreview --query properties.state

Once the feature is registered, run the following command to re-register the Microsoft.ContainerService provider.

az provider register --namespace Microsoft.ContainerService
warning

As noted in the AKS Automatic documentation, AKS Automatic tries to dynamically select a virtual machine size for the system node pool based on the capacity available in the subscription. Make sure your subscription has quota for 16 vCPUs of any of the following sizes in the region you're deploying the cluster to: Standard_D4pds_v5, Standard_D4lds_v5, Standard_D4ads_v5, Standard_D4ds_v5, Standard_D4d_v5, Standard_D4d_v4, Standard_DS3_v2, Standard_DS12_v2. You can view quotas for specific VM-families and submit quota increase requests through the Azure portal.

Before we begin lets create a new directory that can be a placeholder for all of our files created during this lab:

mkdir aks-labs
cd aks-labs

Next, proceed by declaring the following environment variables:

cat <<EOF> .envrc
# Environment variables
RESOURCE_GROUP_NAME="rg-petclinic"
LOCATION="westus3"
NAME_SUFFIX=$(openssl rand -hex 4)  # Generates 8-character random suffix

# Resource names
AKS_CLUSTER_NAME="aks-petclinic"
POSTGRES_SERVER_NAME="db-petclinic${NAME_SUFFIX:0:4}"
POSTGRES_DATABASE_NAME="petclinic"
USER_ASSIGNED_IDENTITY_NAME="mi-petclinic"
ACR_NAME="acrpetclinic${NAME_SUFFIX:0:6}"
EOF

Load the environment variables:

source .envrc
tip

Now that we have saved the environment variables, you can always reload these variables later if needed by running source .envrc on this directory.

Create the resources for the workshop​

Create the Resource Group

az group create --name ${RESOURCE_GROUP_NAME} --location ${LOCATION}

Create the User Assigned Managed Identity

az identity create \
  --name ${USER_ASSIGNED_IDENTITY_NAME} \
  --resource-group ${RESOURCE_GROUP_NAME} \
  --location ${LOCATION}

# Capture the identity details
USER_ASSIGNED_IDENTITY_ID=$(az identity show \
  --name ${USER_ASSIGNED_IDENTITY_NAME} \
  --resource-group ${RESOURCE_GROUP_NAME} \
  --query id \
  --output tsv)

USER_ASSIGNED_IDENTITY_CLIENT_ID=$(az identity show \
  --name ${USER_ASSIGNED_IDENTITY_NAME} \
  --resource-group ${RESOURCE_GROUP_NAME} \
  --query clientId \
  --output tsv)

USER_ASSIGNED_IDENTITY_PRINCIPAL_ID=$(az identity show \
  --name ${USER_ASSIGNED_IDENTITY_NAME} \
  --resource-group ${RESOURCE_GROUP_NAME} \
  --query principalId \
  --output tsv)

Create the PostgreSQL Flexible Server

az postgres flexible-server create \
  --name ${POSTGRES_SERVER_NAME} \
  --resource-group ${RESOURCE_GROUP_NAME} \
  --location ${LOCATION} \
  --sku-name Standard_B1ms \
  --tier Burstable \
  --version 15 \
  --storage-size 32 \
  --storage-auto-grow Enabled \
  --microsoft-entra-auth Enabled \
  --password-auth Disabled

az postgres flexible-server db create \
  --resource-group ${RESOURCE_GROUP_NAME} \
  --server-name ${POSTGRES_SERVER_NAME} \
  --database-name ${POSTGRES_DATABASE_NAME}

# Capture database ID
POSTGRES_DATABASE_ID=$(az postgres flexible-server db show \
  --resource-group ${RESOURCE_GROUP_NAME} \
  --server-name ${POSTGRES_SERVER_NAME} \
  --database-name ${POSTGRES_DATABASE_NAME} \
  --query id \
  --output tsv)

Create the Azure Container Registry

az acr create \
  --name ${ACR_NAME} \
  --resource-group ${RESOURCE_GROUP_NAME} \
  --location ${LOCATION} \
  --sku Basic

# Capture ACR details
ACR_LOGIN_SERVER=$(az acr show \
  --name ${ACR_NAME} \
  --resource-group ${RESOURCE_GROUP_NAME} \
  --query loginServer \
  --output tsv)

Create the AKS Automatic Cluster

az aks create \
  --name ${AKS_CLUSTER_NAME} \
  --resource-group ${RESOURCE_GROUP_NAME} \
  --location ${LOCATION} \
  --sku automatic \
  --attach-acr ${ACR_NAME}

# Capture AKS cluster ID
AKS_CLUSTER_ID=$(az aks show \
  --name ${AKS_CLUSTER_NAME} \
  --resource-group ${RESOURCE_GROUP_NAME} \
  --query id \
  --output tsv)

AKS_CLUSTER_FQDN=$(az aks show \
  --name ${AKS_CLUSTER_NAME} \
  --resource-group ${RESOURCE_GROUP_NAME} \
  --query fqdn \
  --output tsv)

Get the credentials to access the cluster:

az aks get-credentials \
  --name ${AKS_CLUSTER_NAME} \
  --resource-group ${RESOURCE_GROUP_NAME} \
  --file "${AKS_CLUSTER_NAME}-kubeconfig"

Use the ${AKS_CLUSTER_NAME}-kubeconfig file this as your KUBECONFIG

export KUBECONFIG=$PWD/${AKS_CLUSTER_NAME}-kubeconfig

You can now test your access to the AKS Automatic cluster

kubectl get pods

Install the Service Connector​

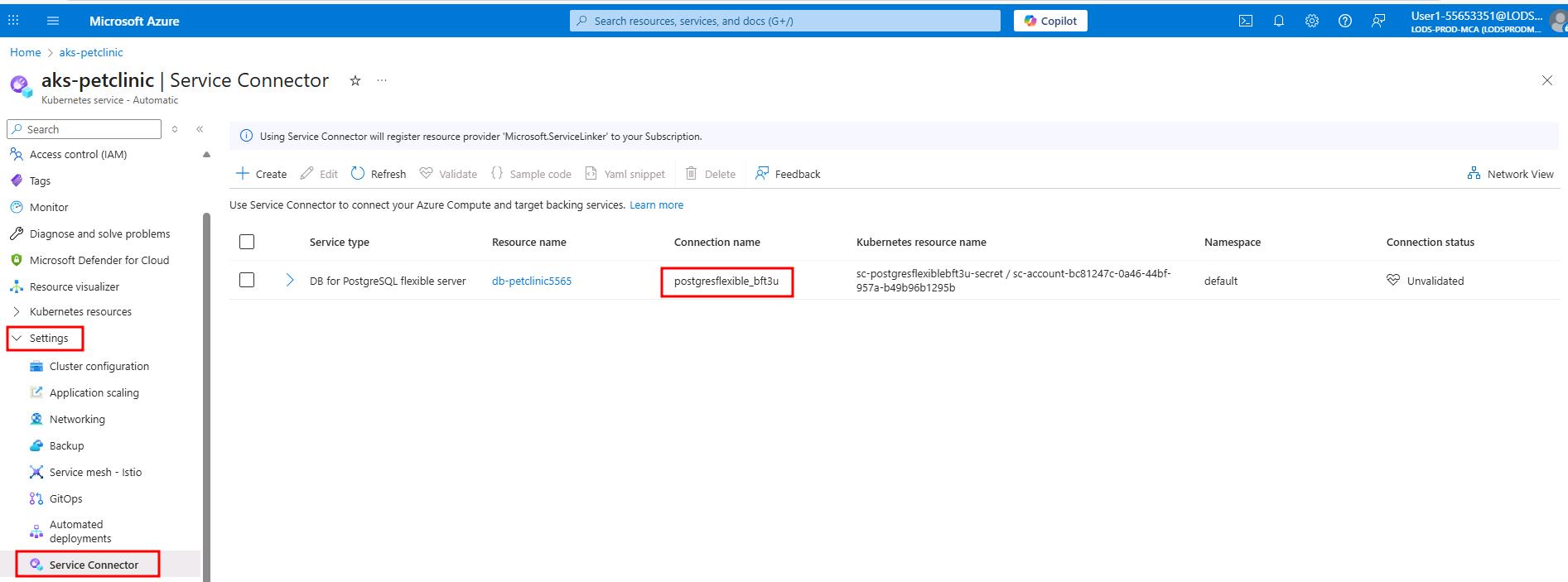

Next, we need to install the Service Connector. This will allow the AKS Automatic cluster and the Postgres Flexible Server to communicate securely. In a terminal, run the following command to install the service-connector:

az extension add --name serviceconnector-passwordless --upgrade

az aks connection create postgres-flexible \
--source-id ${AKS_CLUSTER_ID} \
--target-id ${POSTGRES_DATABASE_ID} \
--workload-identity ${USER_ASSIGNED_IDENTITY_ID} \
--client-type none \
--kube-namespace default

:::note
This command will take about 8 minutes to run. To make the most of your time on this lab, you can leave it running on this terminal until it finishes.
:::

### Sign In to VS Code with GitHub

To use GitHub Copilot, sign in with the GitHub account. After signing in to GitHub, open VS Code and complete the Copilot setup:

1. Open VS Code and click on the **Extensions** icon in the left sidebar. Search for **GitHub Copilot Chat** and install the extension.

   ![VS Code Extensions](assets/migrate-to-aks-automatic/vscode-extensions.png)

2. Click the **account icon** (bottom right) → **Sign in to use Copilot.**

   ![VS Code Sign Out State](assets/migrate-to-aks-automatic/vscode-signed-out.png)

3. Select **Continue with GitHub**.

   ![VS Code Continue with GitHub](assets/migrate-to-aks-automatic/vscode-continue-with-github.png)

4. Authorize VS Code to access your GitHub account.

   ![GitHub Authorization](assets/migrate-to-aks-automatic/github-authorize-vscode.png)

5. Click **Connect**, then **Authorize Visual-Studio-Code**.

   ![GitHub Authorization Complete](assets/migrate-to-aks-automatic/github-authorization-complete.png)

6. When prompted, choose to always allow **vscode.dev** to open links.

   ![Allow VS Code Links](assets/migrate-to-aks-automatic/vscode-allow-links.png)

7. Back in VS Code, open the **GitHub Copilot Chat** window and switch the model to **Claude Sonnet 4.5**.

   ![GitHub Copilot Claude Model](assets/migrate-to-aks-automatic/github-copilot-claude-model.png)


## Set Up Local PetClinic Environment
### Run the Automated Setup Script

To facilitate standing up our local environment, we will use a script to perform a complete one-command setup. This script will:

1. **Clone the repository** to `~/spring-petclinic` and creates a symlink for easy access
2. **Launch PostgreSQL** in a Docker container with pre-configured credentials
3. **Build and start** the Spring Boot application connected to the database

Steps:

1. Clone the GitHub repository for this workshop.

	```bash
	git clone https://github.com/appdevgbb/mm-springboot-petclinic-to-aks-automatic-ignite.git

  1. Next, execute the setup script from the infra directory:

    cd mm-springboot-petclinic-to-aks-automatic-ignite/infra
    chmod +x setup-local-lab-infra.sh
    ./setup-local-lab-infra.sh

The script will complete in approximately 1-2 minutes. When finished, your PetClinic application will be running at http://localhost:8080.

Verify and Explore PetClinic Locally​

In this section, you'll confirm that the locally deployed PetClinic application is running with PostgreSQL, and explore its main features.

In VS Code, open a new terminal by pressing Ctrl+` (backtick) or go to Terminal → New Terminal in the menu.

In the new terminal, run the petclinic:

mvn clean compile && mvn spring-boot:run \
-Dspring-boot.run.arguments="--spring.messages.basename=messages/messages \
--spring.datasource.url=jdbc:postgresql://localhost/petclinic \
--spring.sql.init.mode=always \
--spring.sql.init.schema-locations=classpath:db/postgres/schema.sql \
--spring.sql.init.data-locations=classpath:db/postgres/data.sql \
--spring.jpa.hibernate.ddl-auto=none"

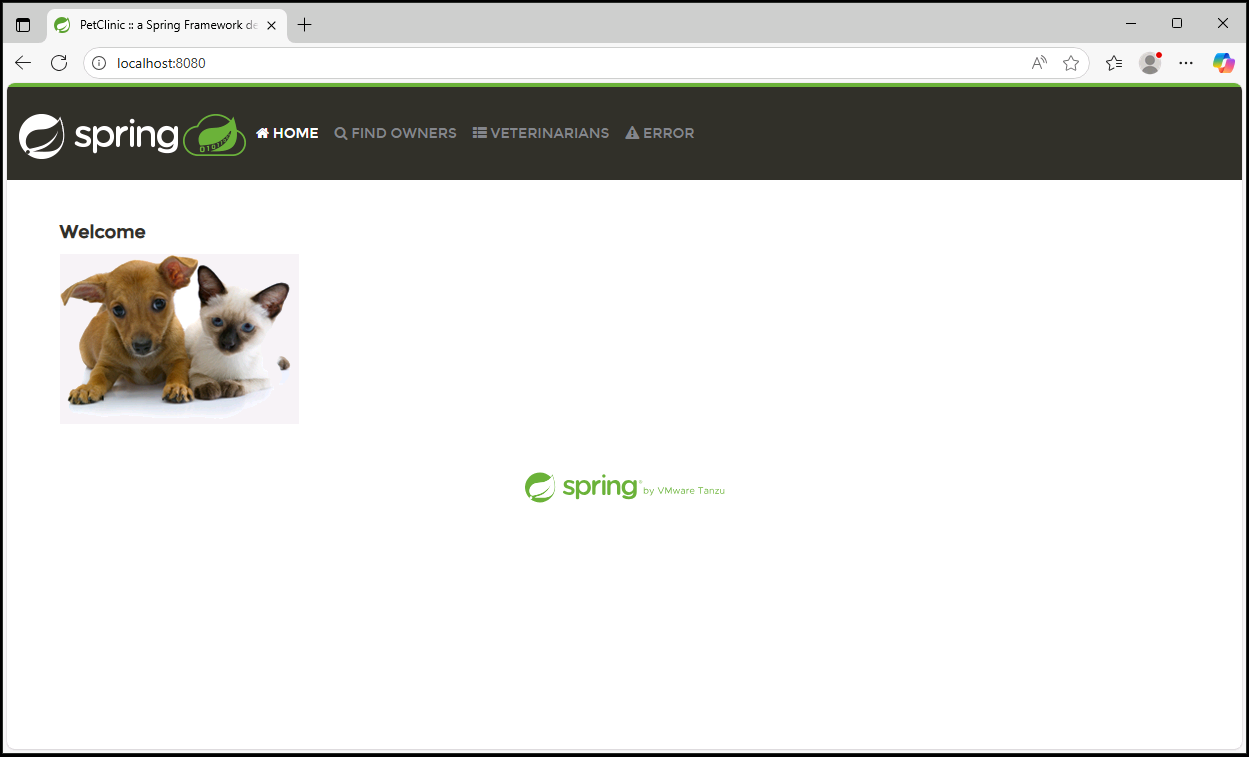

Open your browser and go to http://localhost:8080 to confirm the PetClinic application is running.

PetClinic Application Running

Explore the PetClinic Application​

Once it's running, try out the key features:

  • Find Owners: Select "FIND OWNERS", leave the Last Name field blank, and click "Find Owner" to list all 10 owners.

  • View Owner Details: Click an owner (e.g., Betty Davis) to see their information and pets.

  • Edit Pet Information: From an owner's page, click "Edit Pet" to view or modify pet details.

  • Review Veterinarians: Go to "VETERINARIANS" to see the 6 vets and their specialties (radiology, surgery, dentistry).

After exploring the PetClinic application, you can stop it by pressing CTRL+C.

Application Modernization​

In this section, you'll use GitHub Copilot app modernization to assess, remediate, and modernize the Spring Boot application in preparation to migrate the workload to AKS Automatic.

Next let's begin our modernization work.

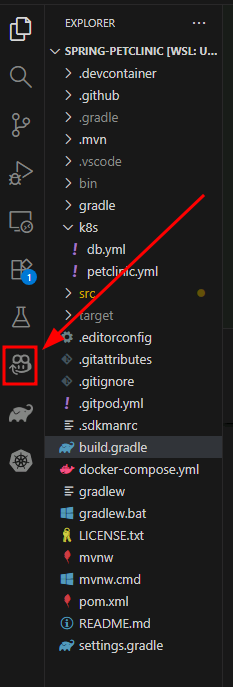

  1. Select GitHub Copilot app modernization extension.

    GitHub Copilot App Modernization Extension

Execute the Assessment​

Now that you have GitHub Copilot setup, you can use the assessment tool to analyze your Spring Boot PetClinic application using the configured analysis parameters.

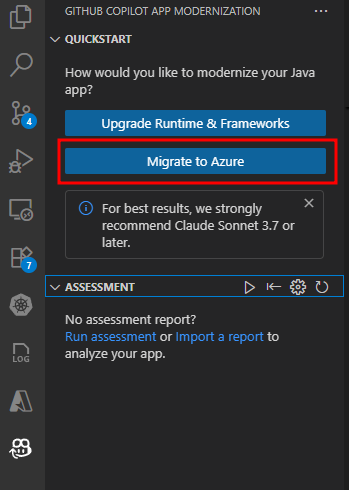

  1. Navigate the Extension Interface and click Migrate to Azure to begin the modernization process.

    App Modernization Extension Interface

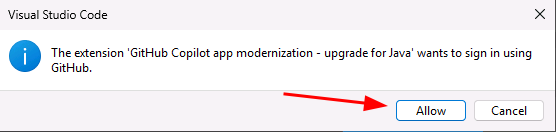

  2. Allow the GitHub Copilot app modernization to sign in to GitHub.

    Allow GitHub Sign In

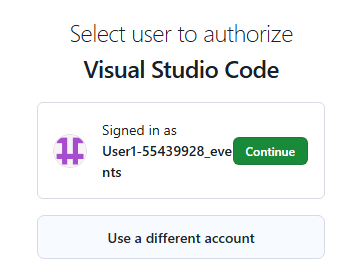

  3. Authorize your user to sign in.

    GitHub User Authorization

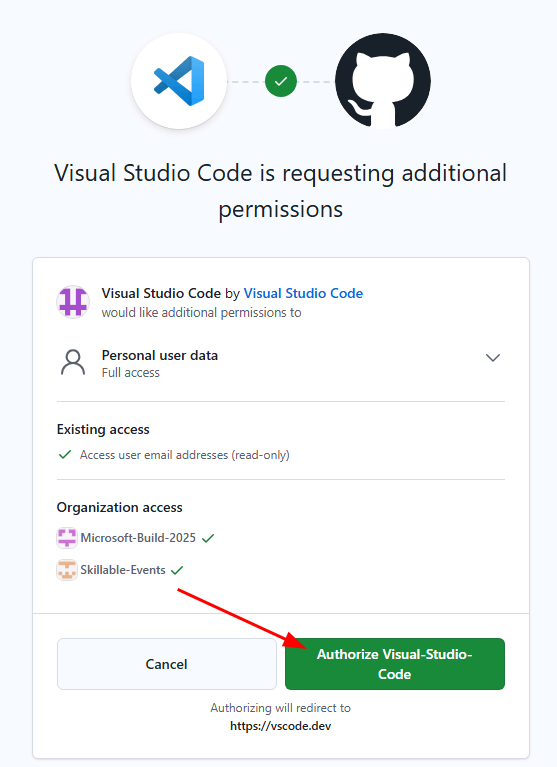

  4. And finally, authorize it again on this screen.

    GitHub Authorization Screen

  5. The assessment will start now. Notice that GitHub will install the AppCAT CLI for Java. This might take a few minutes.

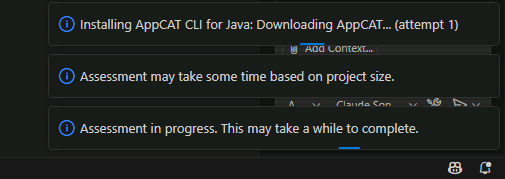

    AppCAT CLI Installation

info

You can follow the progress of the upgrade by looking at the Terminal in VS Code.

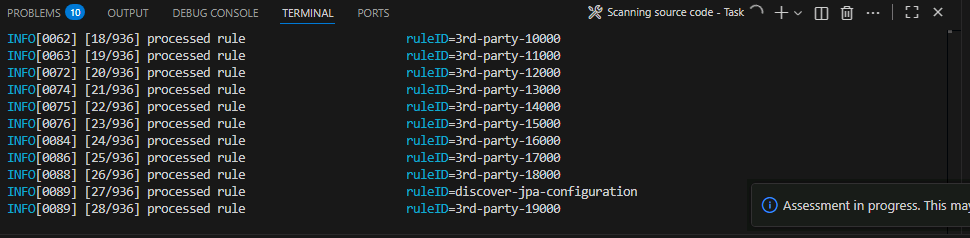

Assessment Rules Terminal

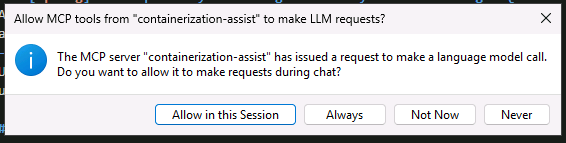

Also note that you might be prompted to allow access to the language models provided by GitHub Copilot Chat. Click on Allow.

Allow Copilot LLM Access

Overview of the Assessment​

Assessment results are consumed by GitHub Copilot App Modernization (AppCAT). AppCAT examines the scan findings and produces targeted modernization recommendations to prepare the application for containerization and migration to Azure.

  • target: the desired runtime or Azure compute service you plan to move the app to.
  • mode: the analysis depth AppCAT should use.

Analysis Targets​

Target values select the rule sets and guidance AppCAT will apply.

TargetDescription
azure-aksGuidance and best practices for deploying to Azure Kubernetes Service (AKS).
azure-appserviceGuidance and best practices for deploying to Azure App Service.
azure-container-appsGuidance and best practices for deploying to Azure Container Apps.
cloud-readinessGeneral recommendations to make the app "cloud-ready" for Azure.
linuxRecommendations to make the app Linux-ready (packaging, file paths, runtime details).
openjdk11Compatibility and runtime recommendations for running Java 8 apps on Java 11.
openjdk17Compatibility and runtime recommendations for running Java 11 apps on Java 17.
openjdk21Compatibility and runtime recommendations for running Java 17 apps on Java 21.

Analysis Modes​

Choose how deep AppCAT should inspect the project.

ModeDescription
source-onlyFast analysis that examines source code only.
fullFull analysis: inspects source code and scans dependencies (slower, more thorough).

Where to Change These Options​

Edit the file at .github/appmod-java/appcat/assessment-config.yaml to change targets and modes.

For this lab, AppCAT runs with the following configuration:

appcat:
  - target:
      - azure-aks
      - azure-appservice
      - azure-container-apps
      - cloud-readiness
    mode: source-only

If you want a broader scan (including dependency checks) change mode to full, or add/remove entries under target to focus recommendations on a specific runtime or Azure compute service.

Review the Assessment Results​

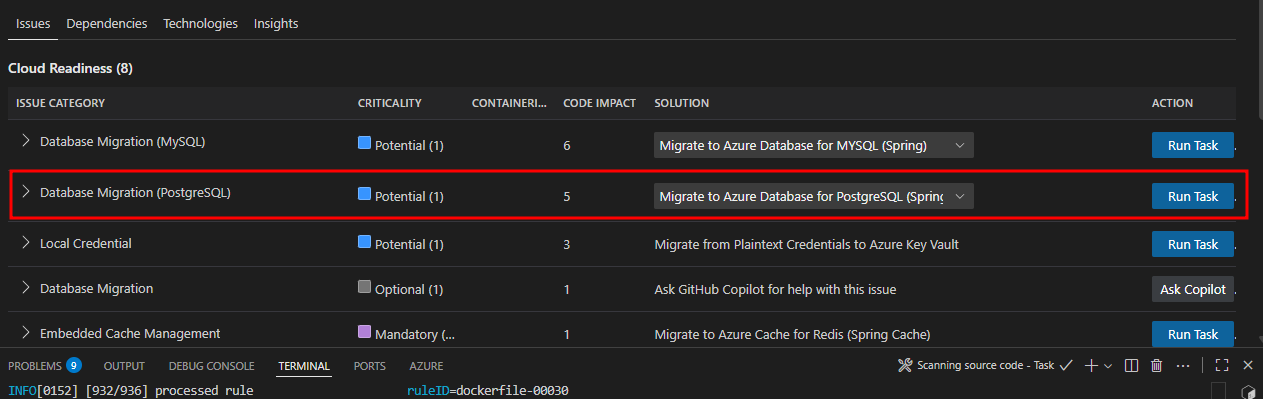

After the assessment completes, you'll see a success message in the GitHub Copilot chat summarizing what was accomplished:

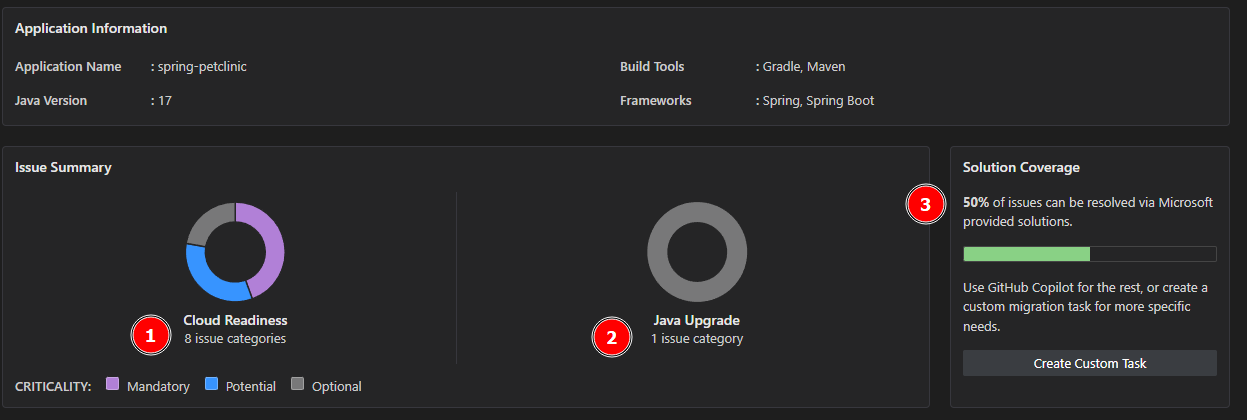

Assessment Report Overview

The assessment analyzed the Spring Boot Petclinic application for cloud migration readiness and identified the following:

Key Findings:

  • 8 cloud readiness issues requiring attention
  • 1 Java upgrade opportunity for modernization

Resolution Approach: More than 50% of the identified issues can be automatically resolved through code and configuration updates using GitHub Copilot's built-in app modernization capabilities.

Issue Prioritization: Issues are categorized by urgency level to guide remediation efforts:

  • Mandatory (Purple) - Critical issues that must be addressed before migration.
  • Potential (Blue) - Performance and optimization opportunities.
  • Optional (Gray) - Nice-to-have improvements that can be addressed later.

This prioritization framework ensures teams focus on blocking issues first while identifying opportunities for optimization and future enhancements.

Review Specific Findings​

Click on individual issues in the report to see detailed recommendations. In practice, you would review all recommendations and determine the set that aligns with your migration and modernization goals for the application.

note

For this lab, we will spend our time focusing on one modernization recommendation: updating the code to use modern authentication via Azure Database for PostgreSQL Flexible Server with Entra ID authentication.

AspectDetails
Modernization Lab FocusDatabase Migration to Azure PostgreSQL Flexible Server
What was foundPostgreSQL database configuration using basic authentication detected in Java source code files
Why this mattersExternal dependencies like on-premises databases with legacy authentication must be resolved before migrating to Azure
Recommended solutionMigrate to Azure Database for PostgreSQL Flexible Server
BenefitsFully managed service with automatic backups, scaling, and high availability

Take Action on Findings​

Based on the assessment findings, GitHub Copilot app modernization provides two types of migration actions to assist with modernization opportunities:

  1. Using the guided migrations ("Run Task" button), which offer fully guided, step-by-step remediation flows for common migration patterns that the tool has been trained to handle.

  2. Using the unguided migrations ("Ask Copilot" button), which provide AI assistance with context aware guidance and code suggestions for more complex or custom scenarios.

Guided vs Unguided Migration Options

For this workshop, we'll focus on one modernization area that demonstrates how to externalize dependencies in the workload to Azure PaaS before deploying to AKS Automatic. We'll migrate from self-hosted PostgreSQL with basic authentication to Azure PostgreSQL Flexible Server using Entra ID authentication with AKS Workload Identity.

Select PostgreSQL Migration Task​

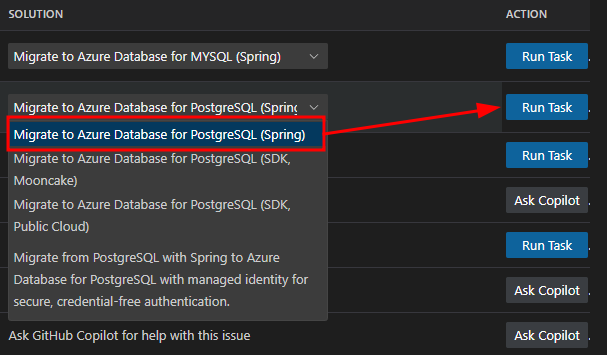

Begin the modernization by selecting the desired migration task. For our Spring Boot application, we will migrate to Azure PostgreSQL Flexible Server using the Spring option. The other options shown are for generic JDBC usage.

Select PostgreSQL Migration Task

note

Choose the "Spring" option for Spring Boot applications, as it provides Spring-specific optimizations and configurations. The generic JDBC options are for non-Spring applications.

Execute Postgres Migration Task​

Click the Run Task button described in the previous section to kick off the modernization changes needed in the PetClinic app. This will update the Java code to work with PostgreSQL Flexible Server using Entra ID authentication.

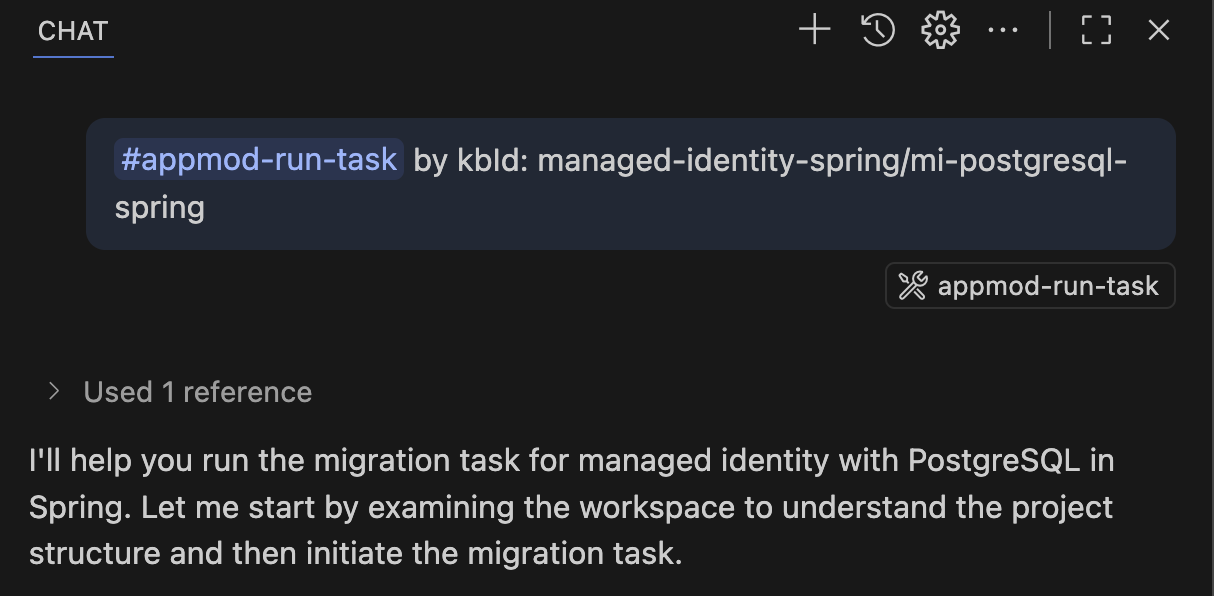

Run PostgreSQL Migration Task

The tool will execute the appmod-run-task command for managed-identity-spring/mi-postgresql-spring, which will examine the workspace structure and initiate the migration task to modernize your Spring Boot application for Azure PostgreSQL with managed identity authentication. If prompted to run shell commands, please review and allow each command as the Agent may require additional context before execution.

Review Migration Plan and Begin Code Migration​

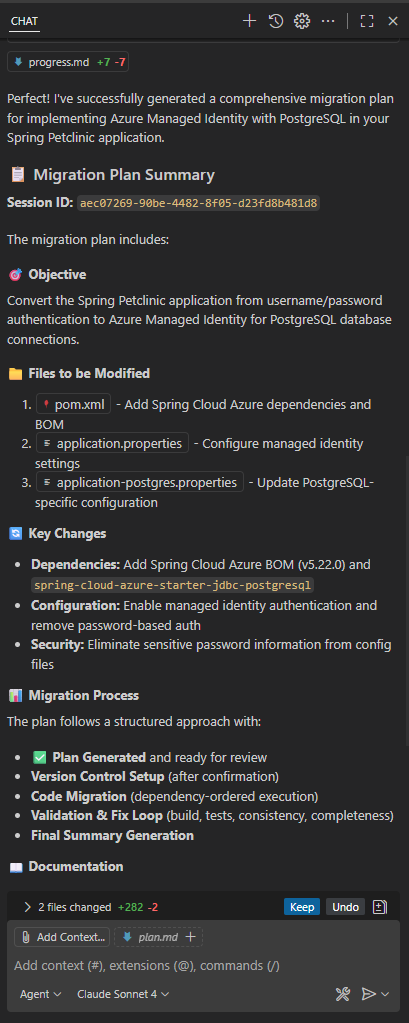

The App Modernization tool has analyzed your Spring Boot application and generated a comprehensive migration plan in its chat window and in the plan.md file. This plan outlines the specific changes needed to implement Azure Managed Identity authentication for PostgreSQL connectivity.

Migration Plan Review

To Begin Migration type "Continue" in the GitHub Agent Chat to start the code refactoring.

Review Migration Process and Progress Tracking​

Once you confirm with "Continue", the migration tool begins implementing changes using a structured, two-phase approach designed to ensure traceability and commit changes to a new dedicated code branch for changes to enable rollback if needed.

Two-Phase Migration Process​

Phase 1: Update Dependencies

  • Purpose: Add the necessary Azure libraries to your project.
  • Changes made:
    • Updates pom.xml with Spring Cloud Azure BOM and PostgreSQL starter dependency
    • Updates build.gradle with corresponding Gradle dependencies
    • Adds Spring Cloud Azure version properties.

Phase 2: Configure Application Properties

  • Purpose: Update configuration files to use managed identity authentication.
  • Changes made:
    • Updates application.properties to configure PostgreSQL with managed identity (9 lines added, 2 removed)
    • Updates application-postgres.properties with Entra ID authentication settings (5 lines added, 4 removed)
    • Replaces username/password authentication with managed identity configuration.

Progress Tracking​

The progress.md file provides real-time visibility into the migration process:

  • Change documentation: Detailed log of what changes are being made and why.
  • File modifications: Clear tracking of which files are being updated.
  • Rationale: Explanation of the reasoning behind each modification.
  • Status updates: Real-time progress of the migration work.
info

How to Monitor Progress:

  • Watch the GitHub Copilot chat for real-time status updates
  • Check the progress.md file in the migration directory for detailed change logs
  • Review the plan.md file to understand the complete migration strategy
  • Monitor the terminal output for any build or dependency resolution messages

Review Migration Completion Summary​

Upon successful completion of the validation process, the App Modernization tool presents a comprehensive migration summary report confirming the successful implementation of Azure Managed Identity authentication for PostgreSQL in your Spring Boot application.

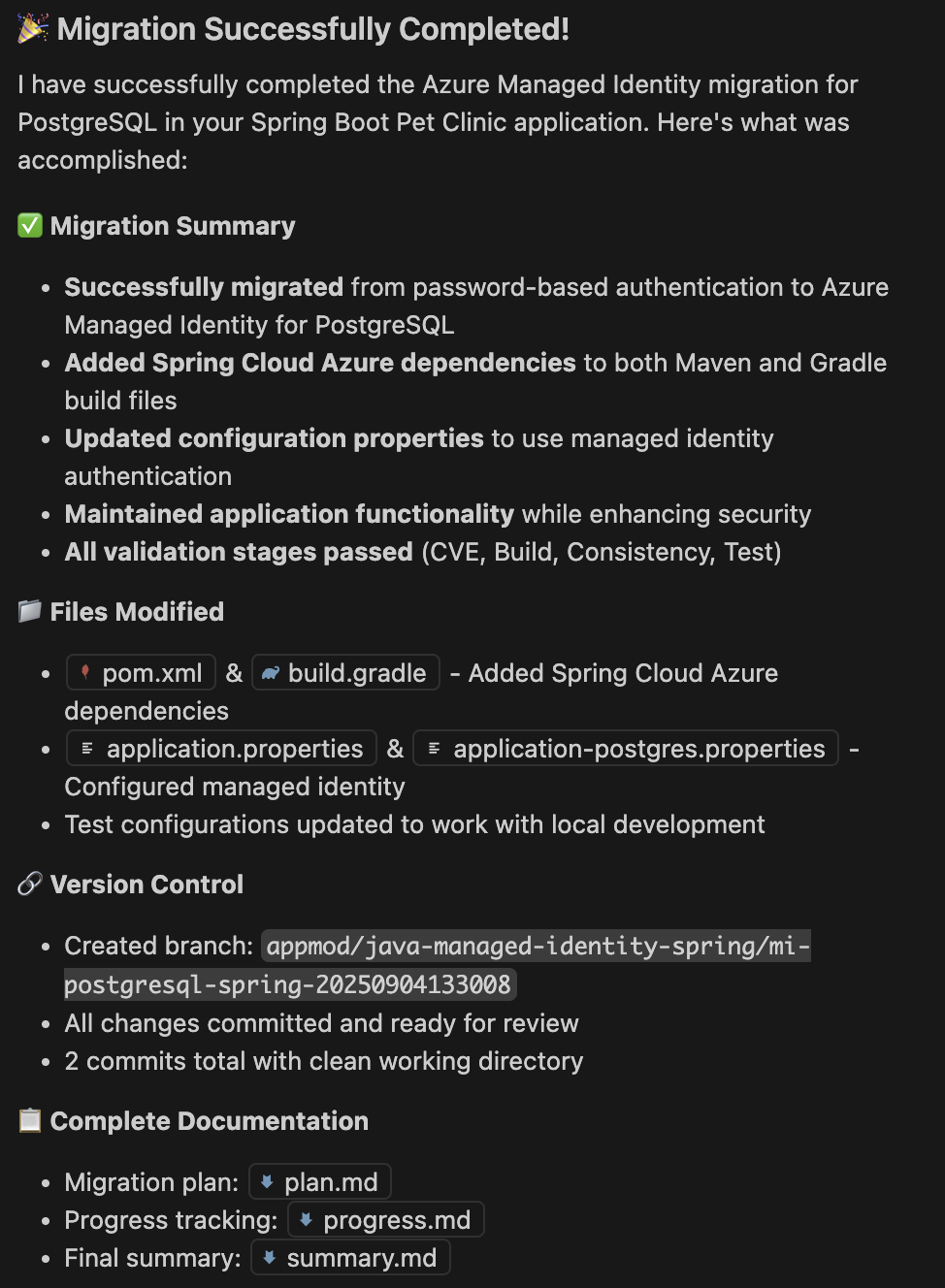

Migration Success Summary

The migration has successfully transformed your application from password-based Postgres authentication to Azure Managed Identity for PostgreSQL, removing the need for credentials in code while maintaining application functionality. The process integrated Spring Cloud Azure dependencies, updated configuration properties for managed identity authentication, and ensured all validation stages passed including: CVE scanning, build validation, consistency checks, and test execution.

info

Because the workload is based on Java Spring Boot, an advantage of this migration is that no Java code changes were required. Spring Boot's configuration-driven architecture automatically handles database connection details based on the configuration files.

When switching from password authentication to managed identity, Spring reads the updated configuration and automatically uses the appropriate authentication method. Your existing Java code for database operations (such as saving pet records or retrieving owner information) continues to function as before, but now connects to the database using the more secure managed identity approach.

Files Modified:

The migration process updated the following configuration files:

  • pom.xml and build.gradle - Added Spring Cloud Azure dependencies.
  • application.properties and application-postgres.properties - Configured managed identity authentication.
  • Test configurations - Updated to work with the new authentication method.
info

Throughout this lab, the GitHub Copilot App Modernization extension will create, edit and change various files. The Agent will give you an option to Keep or Undo these changes which will be saved into a new Branch, preserving your original files in case you need to rollback any changes.

Keep or Undo Changes

Validation and Fix Iteration Loop​

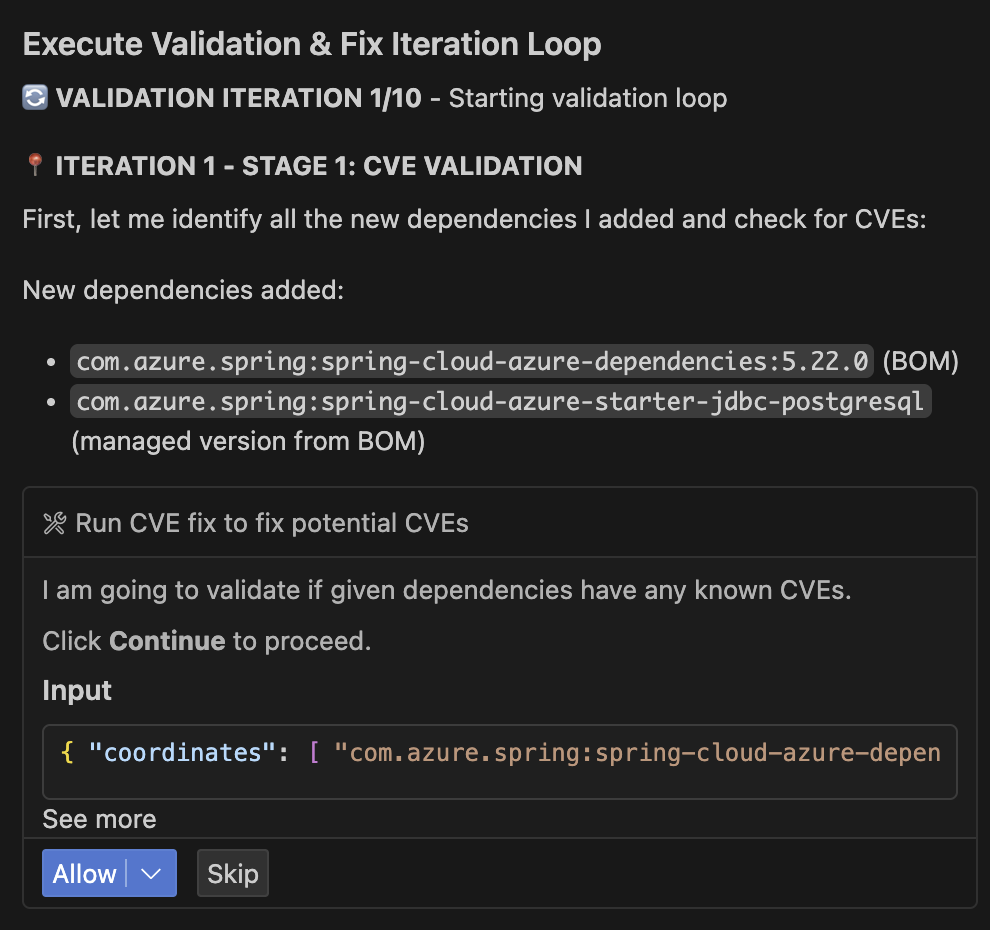

After implementing the migration changes, the App Modernization tool automatically validates the results through a comprehensive testing process to ensure the migration changes are secure, functional, and consistent.

Validation Iteration Loop

Validation Stages:

StageValidationDetails
1CVE ValidationScans newly added dependencies for known security vulnerabilities.
2Build ValidationVerifies the application compiles and builds successfully after migration changes.
3Consistency ValidationEnsures all configuration files are properly updated and consistent.
4Test ValidationExecutes application tests to verify functionality remains intact.
note

During these stages, you might be prompted to allow the GitHub Copilot app modernization extension to access GitHub. Allow it and select your user account when asked.

Allow GitHub Access for CVE Check

Automated Error Detection and Resolution:

The tool includes intelligent error detection capabilities that automatically identify and resolve common issues:

  • Parses build output to detect compilation errors.
  • Identifies root causes of test failures.
  • Applies automated fixes for common migration issues.
  • Continues through validation iterations (up to 10 iterations) until the build succeeds.
info

User Control:

At any point during this validation process, you may interrupt the automated fixes and manually resolve issues if you prefer to handle specific problems yourself. The tool provides clear feedback on what it's attempting to fix and allows you to take control when needed at any time.

This systematic approach ensures your Spring Boot application is successfully modernized for Azure PostgreSQL with Entra ID authentication while maintaining full functionality.

Generate Containerization Assets with AI​

In this section, you'll use AI-powered tools to generate Docker and Kubernetes manifests for your modernized Spring Boot application.

Retrieve PostgreSQL Configuration from AKS Service Connector​

Before you can use Containerization Assist, you must first retrieve the PostgreSQL Service Connector configuration from your AKS cluster.

This information ensures that your generated Kubernetes manifests are correctly wired to the database using managed identity and secret references.

Access AKS Service Connector and Retrieve PostgreSQL Configuration​

  1. Open a new tab in the Edge browser and navigate to the Azure Portal.

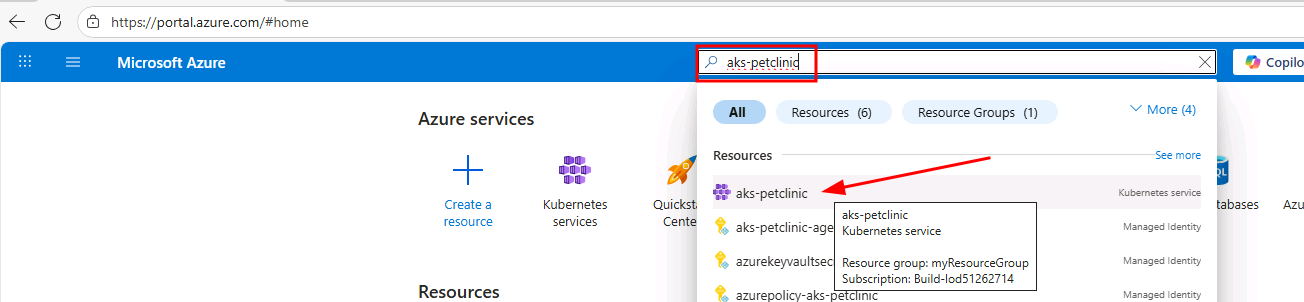

  2. In the top search bar, type aks-petclinic and select the AKS Automatic cluster.

    Select AKS Cluster

  3. In the left-hand menu under Settings, select Service Connector.

    Select Service Connector

  4. You'll see the service connection that was automatically created PostgreSQL connection with a name that starts with postgresflexible_ connecting to your PostgreSQL flexible server.

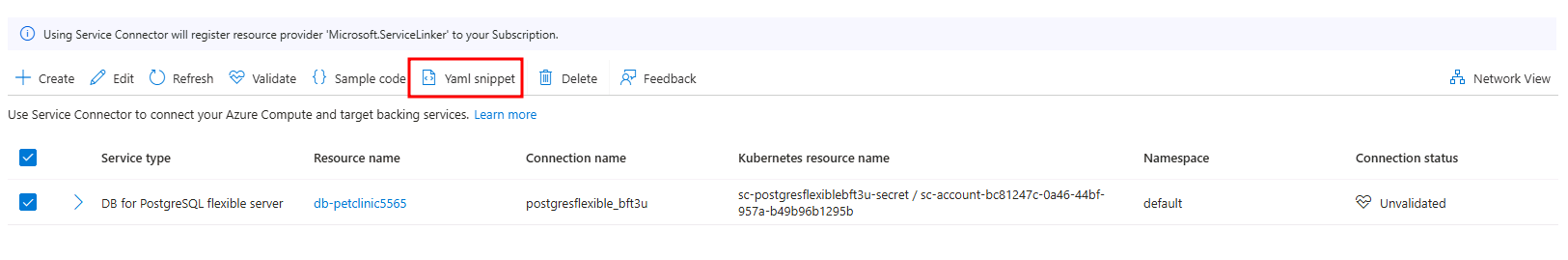

  5. Select the DB for PostgreSQL flexible server and click the YAML snippet button in the action bar.

    YAML Snippet Button

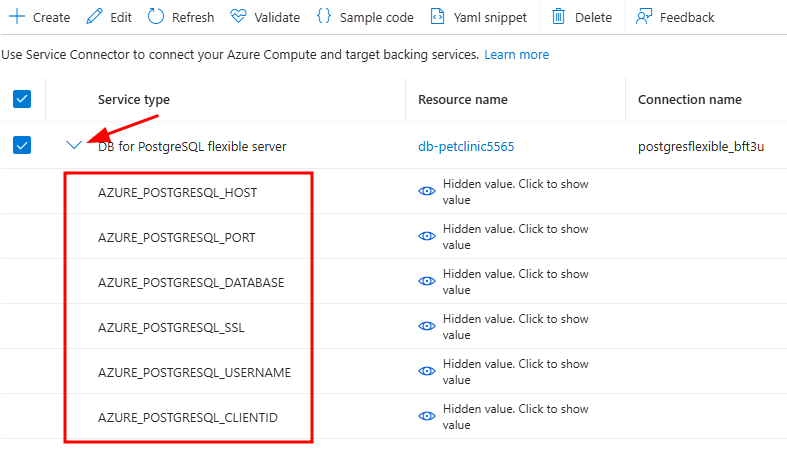

  6. Expand this connection to see the variables that were created by the secret in the cluster.

    Service Connector Variables

Retrieve PostgreSQL YAML Configuration​

The Azure Portal will display a YAML snippet showing how to use the Service Connector secrets for PostgreSQL connectivity.

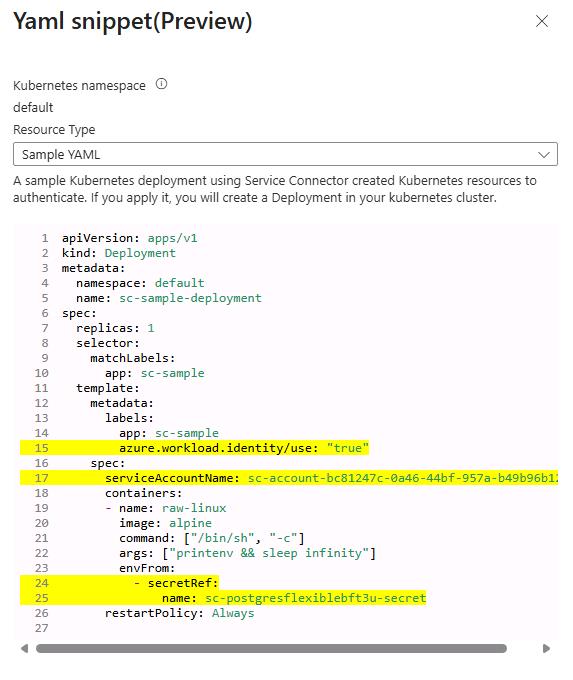

PostgreSQL YAML Configuration Sample

note
  1. The portal shows a sample deployment with workload identity configuration.
  2. Key Elements:
    • Service account: Example format sc-account-d4157fc8-73b5-4a68-acf4-39c8f22db792
    • Secret reference: Example format sc-postgresflexiblebft3u-secret
    • Workload identity label: azure.workload.identity/use: "true"

The Service Connector secret contains the following variables:

  • AZURE_POSTGRESQL_HOST
  • AZURE_POSTGRESQL_PORT
  • AZURE_POSTGRESQL_DATABASE
  • AZURE_POSTGRESQL_CLIENTID (map to both AZURE_CLIENT_ID and AZURE_MANAGED_IDENTITY_NAME)
  • AZURE_POSTGRESQL_USERNAME

Using Containerization Assist​

In the GitHub Copilot agent chat, use the following prompt to generate production-ready Docker and Kubernetes manifests:

Help me containerize the application at ./src and generate Kubernetes deployment artifacts using Containerization Assist. Put all of the kubernetes files in a directory called k8s. Save the deployment and service into a single file called petclinic.yaml. Do not create any deployment scripts for this. The AKS Automatic cluster will connect to PostgreSQL via Azure Service Connector without using a password.
note

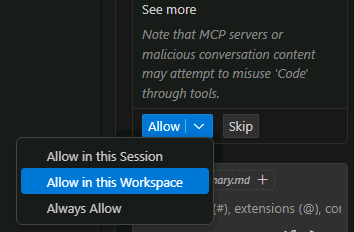

To expedite your lab experience, you can allow the Containerization Assist MCP server to run on this Workspace. Select Allow in this Workspace or Always Allow.

Allow Containerization Assist MCP

You will also need to allow the MCP server to make LLM requests. Select Always.

Allow MCP LLM Requests

The Containerization Assist MCP Server will analyze your repository and generate:

  • Dockerfile: Multi-stage build with optimized base image
  • Kubernetes Deployment: With Azure workload identity, PostgreSQL secrets, health checks, and resource limits
  • Kubernetes Service: LoadBalancer configuration for external access

Expected Result: Kubernetes manifests in the k8s/ directory.

note

You are almost there. You will deploy the AI generated files, but they might need some tuning later. Before deploying it to your cluster, double check the image location, the use of workload identity and if the service connector secret reference in the deployment file are correct to your environment.

Build and Push Container Image to ACR​

Build the containerized application and push it to your Azure Container Registry.

Login to ACR using Azure CLI:

az acr login --name ${ACR_NAME}

Build the Docker image in Azure Container Registry:

az acr build -t petclinic:0.0.1 . -r ${ACR_NAME}

Deploy to AKS​

In this section, you'll deploy the modernized application to AKS Automatic using Service Connector secrets for passwordless authentication with PostgreSQL.

info

About AKS Automatic: AKS Automatic is a new mode for Azure Kubernetes Service that provides an optimized and simplified Kubernetes experience. It offers automated cluster management, built-in security best practices, intelligent scaling, and pre-configured monitoring - making it ideal for teams who want to focus on applications rather than infrastructure management.

Deploy the Application to AKS Automatic​

Apply the Kubernetes manifests to deploy the application.

Update the image name in your deployment manifest with your ACR login server. You can retrieve the name of your Azure Container Registry with this command:

echo "${ACR_LOGIN_SERVER}/petclinic:0.0.1"

Apply the deployment manifest:

kubectl apply -f k8s/petclinic.yaml

Monitor deployment status:

kubectl get pods,services,deployments
note

It might take a minute for the AKS Automatic cluster to provision new nodes for the workload so it is normal to see your pods in a Pending state until the new nodes are available. You can verify if there are nodes available with the kubectl get nodes command.

NAME                                    READY   STATUS              RESTARTS   AGE
petclinic-deployment-5f9db48c65-qpb8l   0/1     Pending             0          2m2s
petclinic-deployment-5f9db48c65-vqb8x   0/1     Pending             0          2m2s

Verify Deployment and Connectivity​

Test the deployed application and verify Entra ID authentication.

Port forward to access the application:

kubectl port-forward svc/petclinic-service 8080:80

Test the application (in another terminal):

curl http://localhost:8080

Check pod logs for successful database connections:

kubectl logs -l app=petclinic

Verify health endpoints:

curl http://localhost:8080/actuator/health

Validate Entra ID Authentication​

Verify that the application is using passwordless authentication.

Check environment variables in the pod (get first pod with label):

POD_NAME=$(kubectl get pods -l app=petclinic -o jsonpath='{.items[0].metadata.name}')
kubectl exec ${POD_NAME} -- env | grep POSTGRES

Verify no password environment variables are present:

kubectl exec ${POD_NAME} -- env | grep -i pass

Check application logs for successful authentication:

kubectl logs -l app=petclinic --tail=100 | grep -i "connected\|authenticated"

Expected Outcome: The application is successfully deployed to AKS with passwordless authentication to PostgreSQL using Entra ID and workload identity.

Workshop Recap & What's Next​

Congratulations! You've successfully completed a comprehensive application modernization journey, transforming a legacy Spring Boot application into a cloud-native, secure, and scalable solution on Azure.

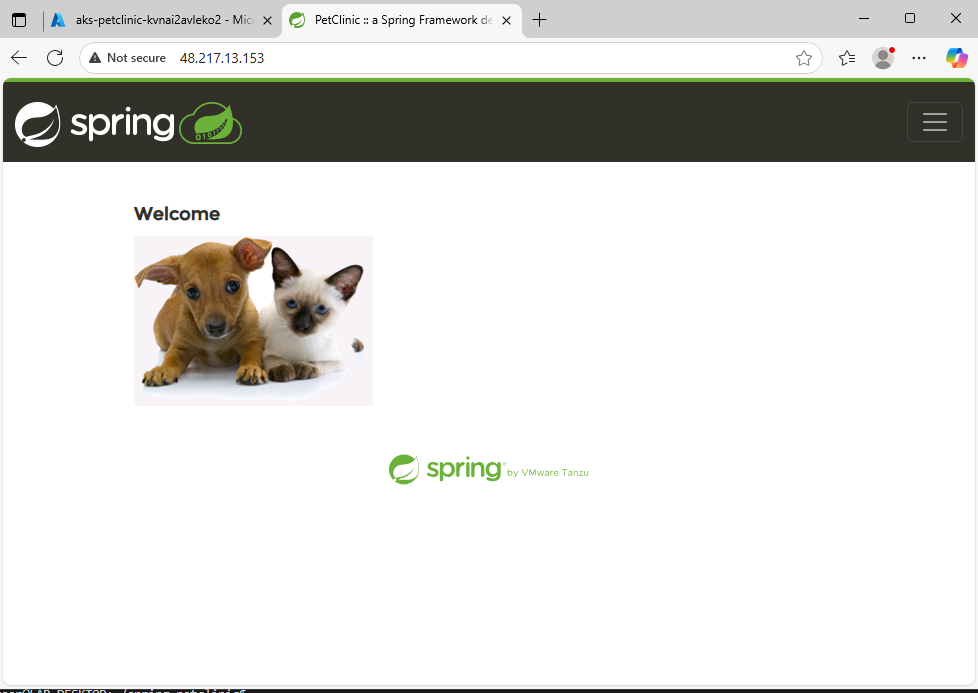

PetClinic on Azure

What You Accomplished​

Local Environment Setup

  • Set up Spring Boot PetClinic with PostgreSQL in Docker
  • Validated local application functionality and database connectivity

Application Modernization

  • Used GitHub Copilot App Modernization to assess code for cloud readiness
  • Migrated from basic PostgreSQL authentication to Azure PostgreSQL Flexible Server
  • Implemented Microsoft Entra ID authentication with managed identity
  • Applied automated code transformations for cloud-native patterns

Containerization

  • Generated Docker containers using AI-powered tools
  • Created optimized Kubernetes manifests with health checks and security best practices
  • Built and pushed container images to Azure Container Registry

Cloud Deployment

  • Deployed to AKS Automatic with enterprise-grade security
  • Configured passwordless authentication using workload identity
  • Integrated Azure Service Connector for seamless database connectivity
  • Validated production deployment with secure authentication

Key Takeaways​

This workshop demonstrated how AI-powered tools can dramatically accelerate application modernization while maintaining code quality and security standards. The combination of GitHub Copilot App Modernization and Azure's managed services enables teams to focus on business value rather than infrastructure complexity.
